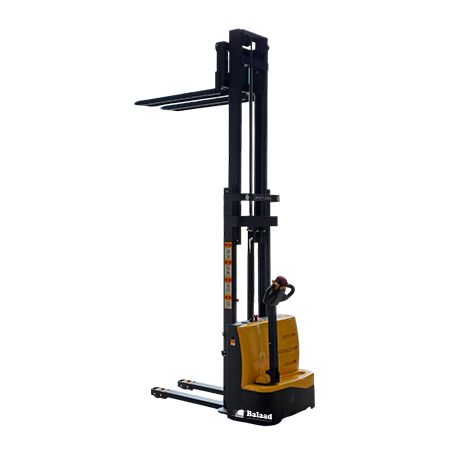

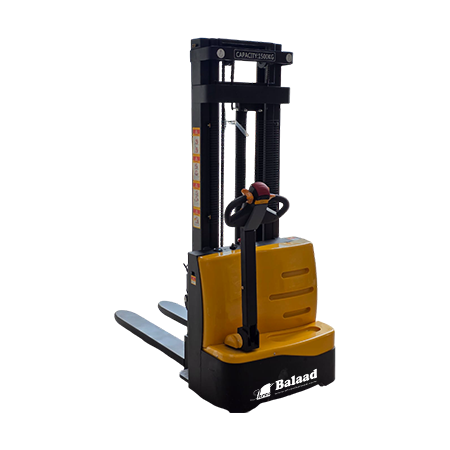

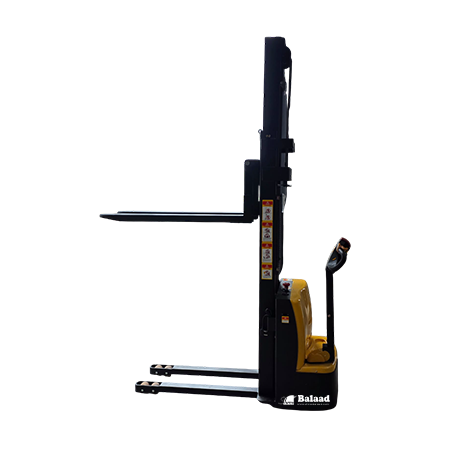

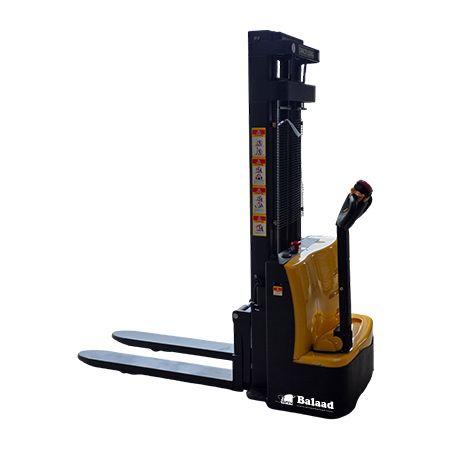

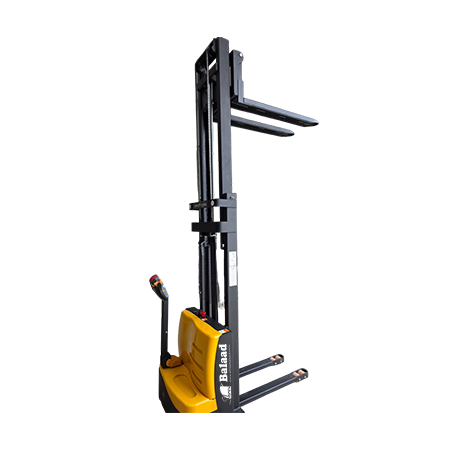

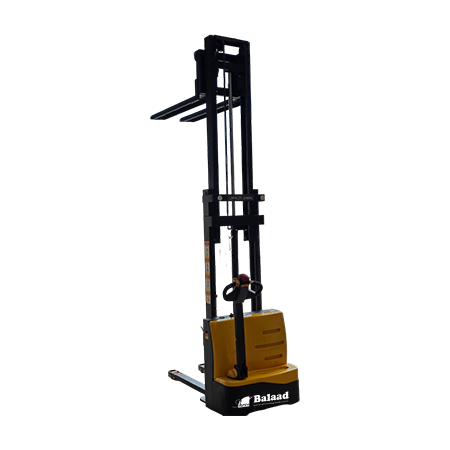

Economy Walkie Fully Battery Stacker
- Fully electric operation – electric lift + electric drive
- Walkie-style tiller for precise and effortless control
- Heavy-duty mast with excellent stability
- Efficient traction motor for smooth movement
- Maintenance-free battery with auto charger
- Electromagnetic braking system
- PU/Nylon wheels for silent and smooth operation
- Overload and emergency-stop safety features
- Compact turning radius – ideal for narrow aisles
- Energy-efficient and low maintenance
Detailed Description (Model No.: SB-116)
A budget-friendly fully electric walkie stacker designed for effortless lifting, lowering, and movement—ideal for fast-paced material-handling environments demanding smooth, reliable, and energy-efficient performance.
The Economy Walkie Fully Battery Stacker combines electric lifting and electric driving functions, eliminating manual effort and delivering faster, safer, and more productive material handling.
It features a durable steel chassis, high-strength mast, and a maintenance-free AC/DC drive system for reliable operations. The integrated traction motor, hydraulic power pack, and controller system ensure smooth and precise manoeuvring even in narrow aisles.
Equipped with PU wheels, electromagnetic brake, and smart safety features, the stacker is built for long hours of operation. Its industrial-grade battery and intelligent charger provide extended working time and reduced energy consumption.
The walkie-style tiller handle offers responsive control for lifting, lowering, driving, and reversing with ease.
Technical Parameter
| Economy Walkie Fully Battery Stacker | |||||
|---|---|---|---|---|---|
| Identification | Drive | Full Electric | |||
| Operator type | Walkie | ||||
| Load capacity | Q | kg | 1500 | ||
| Load centre | c | mm | 500 | ||
| Load distance, centre of drive axle to face of forks | x | mm | 610 | ||
| Wheelbase | y | mm | 1380 | ||
| Weight | Service weight including battery | kg | 1430 / 1460 / 1490 | ||
| Wheels/Frame | Tyres | PU | |||
| Tyre size, front | mm | ø 210*70 | |||
| Tyre size, rear(double wheel) | mm | - | |||
| Tyre size, rear(single wheel) | mm | ø 210*85 | |||
| Additional wheels(dimensions) | mm | - | |||
| Number of wheels(front/rear/additional) | 1/2/- | ||||
| Track width, front, driving side | b10 | mm | 850 | ||
| Track width, rear, loading side | b11 | mm | - | ||
| Dimensions | Fork tilting forward/backward | α/β | ° | 05-Mar | |
| Height, mast lowered | h1 | mm | 2105 / 2355 / 2455 | ||
| Free lift | h2 | mm | 1530 / 1780 / 1880 | ||
| Lift | h3 | mm | 2930 | ||
| Lift height | h23 | mm | 3000 / 3500 / 4500 | ||
| Height, mast extended | h4 | mm | 3565 / 4065 / 5065 | ||
| Height of platform(driving position) | h7 | mm | - | ||
| Height of tiller in drive position | |||||
| highest setting | h14 | mm | 1380 | ||
| lowest setting | h14 | mm | 1000 | ||
| Height, fork lowered | h13 | mm | 70 | ||
| Overall length | |||||
| No platform | l1 | mm | 2700 | ||
| platform open | l1 | mm | - | ||
| platform closed | l1 | mm | - | ||
| Length to face of forks | |||||
| No platform | l2 | mm | 1595 | ||
| platform open | l2 | mm | - | ||
| platform closed | l2 | mm | - | ||
| Overall Width | b1/b2 | mm | 940 | ||
| Fork dimensions (thickness/width/length) | s/e/l | mm | 35/100/1070 | ||
| Fork carriage width | b3 | mm | 725 | ||
| Width over forks, min/max | b5 | mm | 220/680 | ||
| Ground clearance, under the mast | m1 | mm | 120 | ||
| Ground clearance, centre of wheelbase | m2 | mm | 70 | ||
| Ground clearance, under the rear body | mm | 70 | |||
| Aisle width for pallets 1000*1200 crossways | |||||
| No platform | Ast | mm | 3160 | ||
| platform open | Ast | mm | - | ||
| platform closed | Ast | mm | - | ||
| Aisle width for pallets 800*1200 lengthways | |||||
| No platform | Ast | mm | 3120 | ||
| platform open | Ast | mm | - | ||
| platform closed | Ast | mm | - | ||
| Turning radius | |||||
| No platform | Wa | mm | 1560 | ||
| platform open | Wa | mm | - | ||
| platform closed | Wa | mm | - | ||
| Performance | Travel speed, with/without load | km/h | 4/5 | ||
| Lift speed, with/without load | m/s | 0.13/0.16 | |||
| Lowering speed, with/without load | m/s | 0.20/0.15 | |||
| Max. gradeability, with/without load | % | 5/10 | |||
| Service brake | Electromagnetic | ||||
| Electrics | Drive motor rating S2 60 min | kW | DC1.1 | ||
| Lift motor rating at S3 | kW | DC2.2 | |||
| Battery voltage/nominal capacity | V/Ah | 48/80 | |||
| Battery weight | kg | 150 | |||
| Battery dimensions | mm | (260*170*220)*4 | |||
| Others | Type of drive control | DC | |||
| Controller | Chambull PVM48S05 | ||||
| Sound level at the driver's ear according to EN 12053 | dB | 65 | |||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Zero manual effort due to full electric lift & drive
- Highly productive for continuous operations
- Lower running cost with efficient power usage
- Operator-friendly controls for safe handling
- Compact design improves accessibility in tight spaces
- Cost-effective alternative to high-end ride-on stackers
