Hook / Boom Stacker

Key Features
  • Heavy-duty boom or hook attachment
  • Perfect for suspended or irregular loads
  • Available in manual, semi-electric & fully electric models
  • Strong, reinforced mast for stable lifting
  • Smooth hydraulic lift with precise control
  • PU/Nylon wheels for easy and silent movement
  • Ergonomic steering handle/tiller
  • Overload protection & safety lock valve
  • Compact turning radius for narrow aisles
  • Can be used with slings, chains, or belts

Detailed Description (Model No.: SB-18)

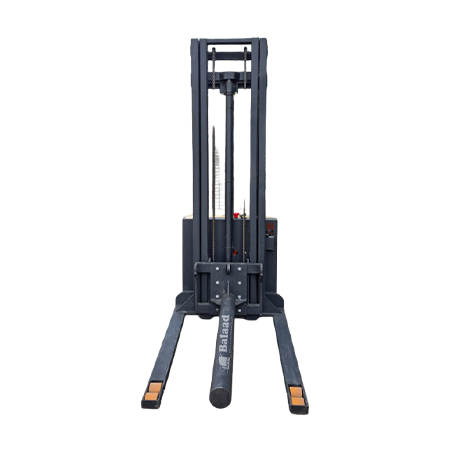

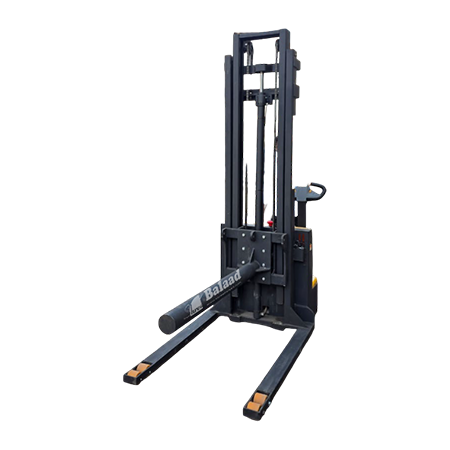

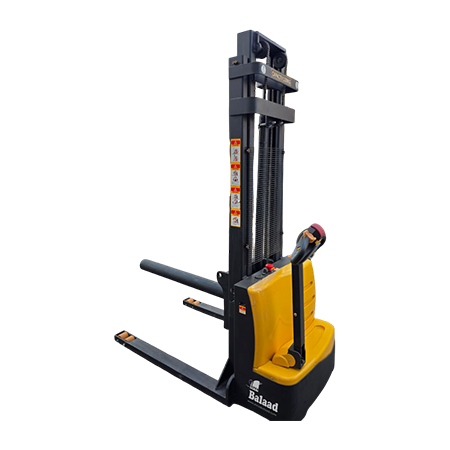

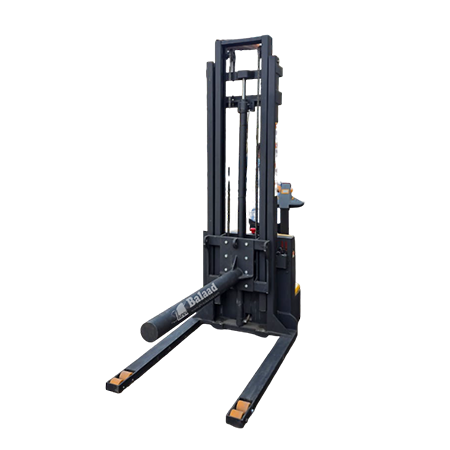

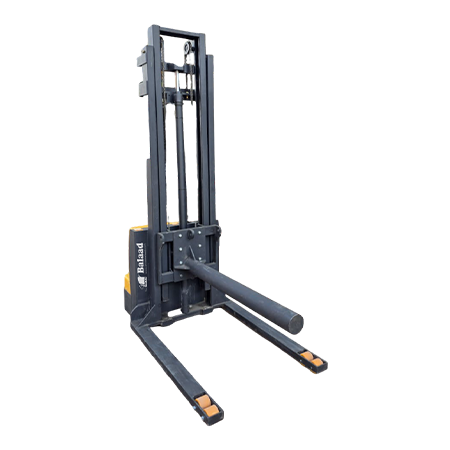

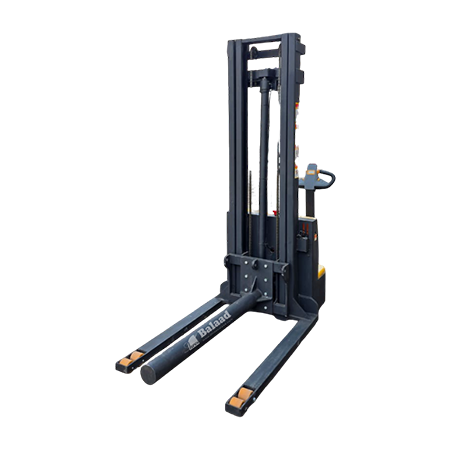

A heavy-duty stacker fitted with a hook or boom attachment for safe and efficient lifting of non-palletized, suspended, or irregular materials.

The Hook / Boom Stacker features a reinforced mast structure combined with a high-strength boom arm or lifting hook, enabling it to lift loads from above, making it perfect for moulds, dies, machine components, and cylindrical items.

The stacker is available in manual, semi-electric, and fully electric versions, offering smooth hydraulic lifting and precise vertical movement. The boom/hook attachment ensures secure lifting of suspended loads using slings, chains, or belts.

Built with a robust steel frame, PU wheels, overload protection, and an ergonomic handle/tiller, this stacker provides exceptional stability and safe operation even in tight industrial spaces. It is widely used where traditional pallets or forks cannot access the load.

The design ensures accurate load positioning, reduced operator effort, and superior performance in continuous industrial applications.

Technical Parameter

SB-18 Hook / Boom Stacker
Max. Load Capacity (kg) 1000 1500 2000
Mast Type Single Double Single Double Single Double
Max. Lifting Height (mm) 1600 2500 / 3000 / 3500 / 4500 1600 2500 / 3000 / 3500 / 4500 1600 2500
Overall Height Mast Lowered (mm) 1970 1750 / 2000 / 2250 / 2750 1970 1750 / 2000 / 2250 / 2750 1970 1750
Overall Height Mast Extended (mm) 1970 3000 / 3500 / 4000 / 5000 1970 3000 / 3500 / 4000 / 5000 1970 3000
Min. Height of Hook / Boom (mm) 90 90 90
Hook / Boom Length (mm) 1150 1150 1550
Leg Length (mm) 1000 1000 1000
Leg Width (mm) 600 600 600
Wheel Type Nylon / PU Nylon / PU Nylon / PU
Drive Wheel Size (mm) 180 × 50 180 × 50 180 × 50
Load Wheel Size (mm) 80 × 70 80 × 70 80 × 70
Operating System Manual / Electric / Battery
Customization available as per your requirement
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Get a Custom Solution

Advantages

  • Ideal for odd-shaped, non-palletized loads
  • Safe, stable, and accurate lifting
  • Reduces manual handling and operator fatigue
  • One stacker for multiple lifting applications
  • Cost-effective substitute for cranes or hoists
  • Perfect for tight industrial spaces
