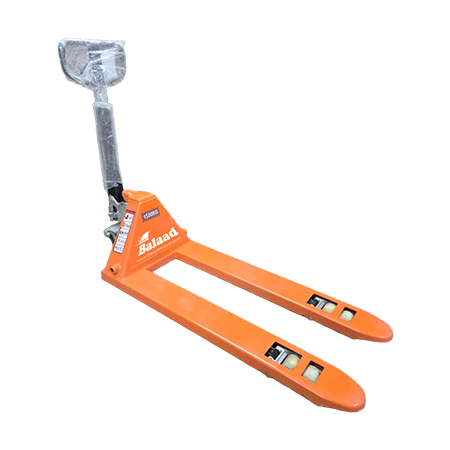

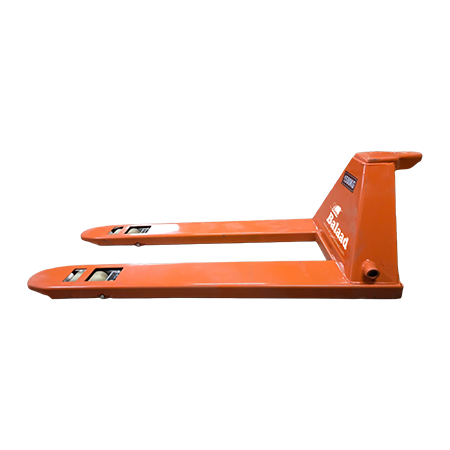

Low Profile Hand Pallet Truck
Key Features
- Ultra-low fork height (35–55 mm)
- Suitable for low or custom pallets
- High-strength steel construction
- Easy and smooth lifting action
- Low turning radius for narrow spaces
Detailed Description (Model No.: SB-07 )
Specially designed pallet truck for ultra-low pallets and material skids.
The Low Profile Hand Pallet Truck allows easy entry under low-height pallets where standard pallet trucks cannot operate. With a reduced fork height and strong frame design, it is perfect for printing units, packaging industries, and specialized pallet movement. The hydraulic system ensures smooth lifting despite the compact structure.
Technical Parameter
| Low Profile Hand Pallet Truck | ||
|---|---|---|
| Fork Length (Mm) | 1150 | 1220 |
| Overall Width (Mm) | 550 | 685 |
| Max. Load Capacity (Kg) | 1500 | 1500 |
| Max. Lifting Height (Mm) | 165 / 175 | 165 |
| Min. Height Of Fork (Mm) | 51 / 65 | 51 |
| Overall Length (Mm) | 1560 | 1630 |
| Wheel Type | NYLON / PU | NYLON / PU |
| Drive Wheel Size (Mm) | 180 × 50 | 180 × 50 |
| Load Wheel Size (Mm) | 80 × 70 | 80 × 70 |
| Structure | MS SHEET | MS SHEET |
| Net Weight (Kg) | — | — |
| Customization Available As Per Your Requirement | ||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Access to low pallets, high efficiency in restricted working areas.
