Paper / Plastic Reel Stacker
- Specialized reel handling attachments
- V-block cradle
- Mechanical/ hydraulic reel clamp
- Core lifting mandrel
- Smooth hydraulic lifting (manual / electric options)
- Strong, reinforced mast for stable vertical lifting
- High maneuverability in narrow spaces
- PU/Nylon wheels for silent & smooth rolling
- Ergonomic control handle for easy operation
- Overload protection & safety lock system
- Optional 360° rotation (model-dependent)
- Powder-coated / stainless-steel versions availabl

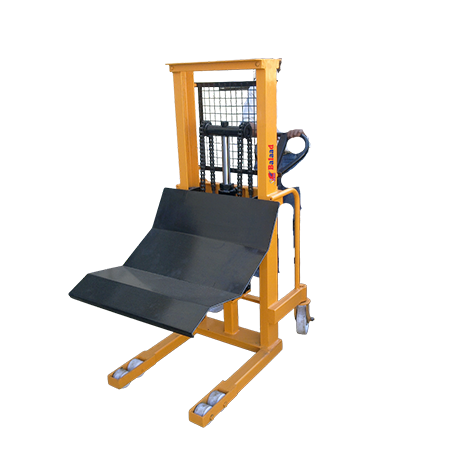

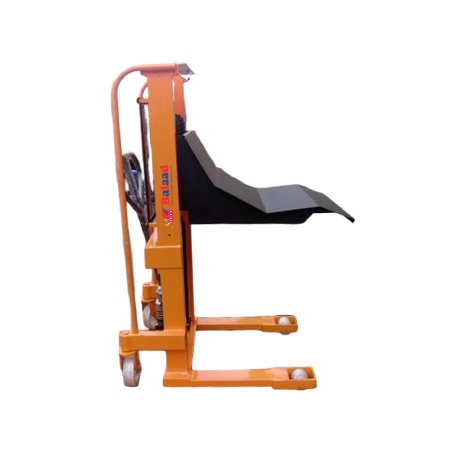

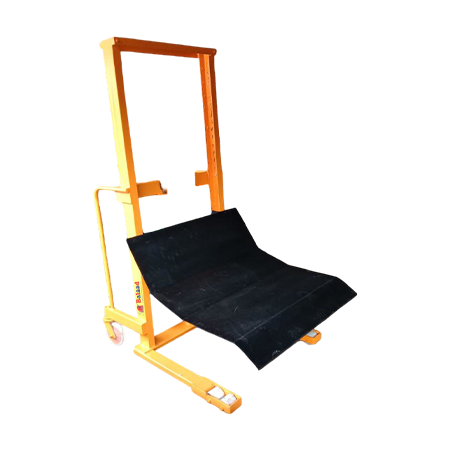

Detailed Description (Model No.: SB-15)
A heavy-duty stacker engineered specifically for lifting and handling cylindrical reels, offering safe gripping, smooth lifting, and accurate positioning for industrial roll-handling applications.
The Paper / Plastic Reel Stacker is equipped with a custom-designed reel lifting attachment such as a V-block cradle, reel clamp, or core lifting shaft depending on the application. This ensures stable and secure handling of reels without causing damage.
The stacker is available in manual, semi-electric, or fully electric versions with powerful hydraulic lifting systems for smooth vertical movement. Its robust steel frame and reinforced mast provide durable performance and higher load stability.
Designed with a compact turning radius, the stacker operates efficiently in narrow aisles. The gripping mechanism ensures reels remain secure during lifting, turning, or shifting, reducing operator fatigue and workplace risk.
The high-quality PU wheels, safety valves, and ergonomic handles ensure stability and smooth movement even when handling heavy or delicate reels.
Technical Parameter
| SB-15 Paper / Plastic Reel Stacker | ||
|---|---|---|
| Max. Lifting Height (mm) | 1000 | 1600 |
| Max. Load Capacity (kg) | 1000 | |
| Min. Height of Fork (mm) | 90 | |
| Platform Size (L × W) (mm) | 800 × 600 | |
| Roll Dia (mm) | 800 to 1000 | |
| Wheel Type | Nylon / PU | |
| Drive Wheel Size (mm) | 180 × 50 | |
| Load Wheel Size (mm) | 80 × 70 | |
| Operating System | Manual / Electric / Battery | |
| Customization available as per your requirement | ||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Safe and damage-free reel handling
- Reduces manual lifting and worker fatigue
- Highly stable under heavy loads
- Customizable attachment options
- Suitable for continuous industrial operation
- Enhances productivity and safety
