Paper Reel Stacker with Fork Extension

Key Features
  • Dual-purpose design – handles paper reels + regular pallets
  • Extended fork length for superior load stability
  • Special reel-handling cradle (V-block / attachment)
  • Smooth hydraulic lifting (manual/electric options)
  • Reinforced heavy-duty steel frame & mast
  • High maneuverability in compact spaces
  • PU/Nylon wheels for silent, smooth mobility
  • Ergonomic tiller/handle for comfortable operation
  • Overload valve & safety lock system
  • Optional stainless-steel build for clean environments

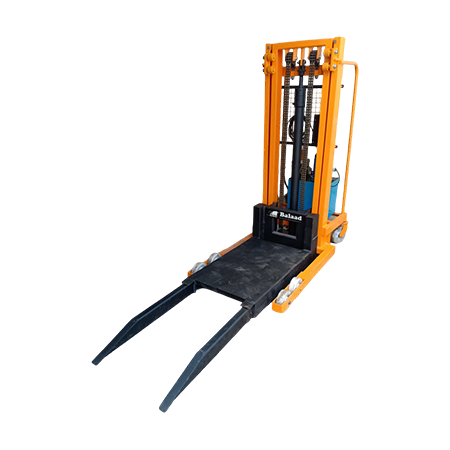

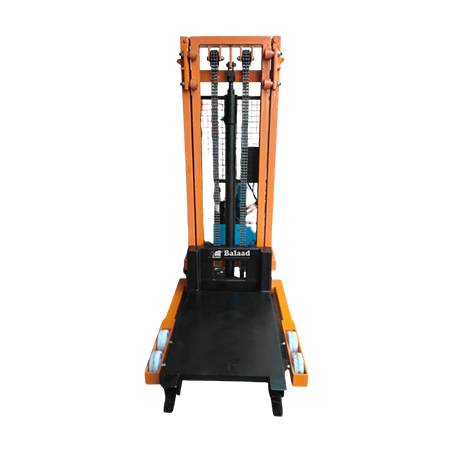

Detailed Description (Model No.: SB-17)

A dual-function stacker designed for safe paper reel lifting and regular pallet handling, featuring extended forks for superior stability and versatile industrial use.

The Paper Reel Stacker with Fork Extension combines a specialized reel-handling cradle with long reinforced forks, allowing operators to lift, transport, and position paper reels securely while also enabling traditional pallet operations.

The extended forks provide enhanced load support, preventing reel rolling or tipping and ensuring a stable lift even for large-diameter or heavy paper rolls. The reel cradle (V-block design) supports cylindrical loads perfectly, minimizing damage during movement.

Available in manual, semi-electric, or fully electric variants, the stacker offers smooth hydraulic lifting and efficient operation in narrow aisles. The robust steel construction, high-grade mast assembly, and PU wheels guarantee long-lasting durability and reliable performance, even in demanding industrial environments.

This multi-purpose design significantly increases productivity by eliminating the need for separate equipment for pallets and reels.

Technical Parameter

SB-17 Paper Reel Stacker with Fork Extension
Max. Load Capacity (kg) 1000 1500 2000
Mast Type Single Double Single Double Single Double
Max. Lifting Height (mm) 1600 2500 / 3000 / 3500 / 4500 1600 2500 / 3000 / 3500 / 4500 1600 2500
Overall Height Mast Lowered (mm) 1970 1750 / 2000 / 2250 / 2750 1970 1750 / 2000 / 2250 / 2750 1970 1750
Overall Height Mast Extended (mm) 1970 3000 / 3500 / 4000 / 5000 1970 3000 / 3500 / 4000 / 5000 1970 3000
Min. Height of Fork (mm) 90 90 90
Load Center (mm) 550 550 550
Overall Length (mm) 1670 1690 1690
Overall Width (mm) 760 760 760
Platform Size (L × W × H) (mm) 900 × 600 900 × 600 900 × 600
Forks Extension Length (mm) 450 mm 450 mm 450 mm
Leg Length (mm) 1000 1000 1000
Wheel Type Nylon / PU Nylon / PU Nylon / PU
Drive Wheel Size (mm) 180 × 50 180 × 50 180 × 50
Load Wheel Size (mm) 80 × 70 80 × 70 80 × 70
Operating System Manual / Electric / Battery
Customization available as per your requirement
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Get a Custom Solution

Advantages

  • One machine, multiple uses – reels + pallets
  • Extended forks provide extra stability & safety
  • Reduces handling time and equipment cost
  • Prevents reel damage during lifting & shifting
  • Ideal for heavy or large-diameter paper reels
  • Boosts productivity in mixed-material warehouses
