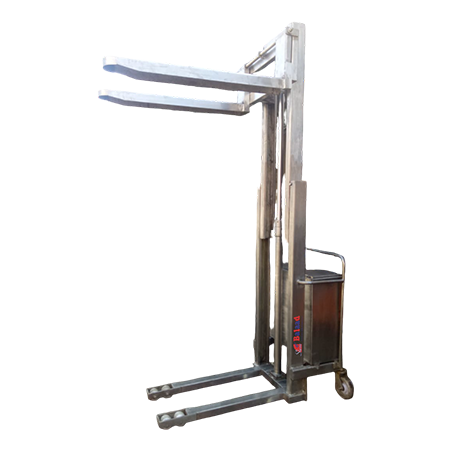

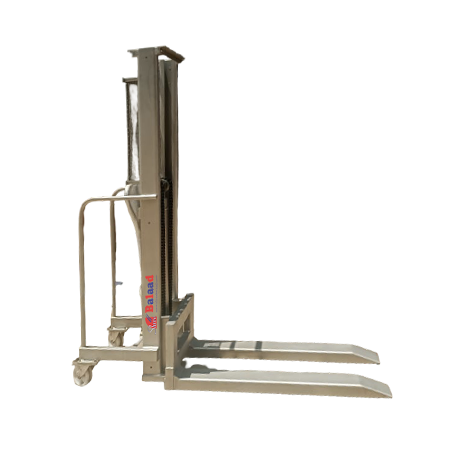

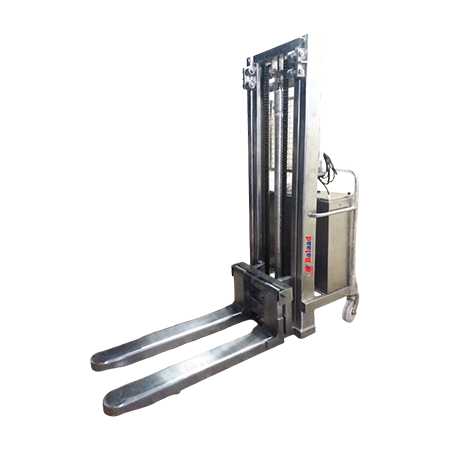

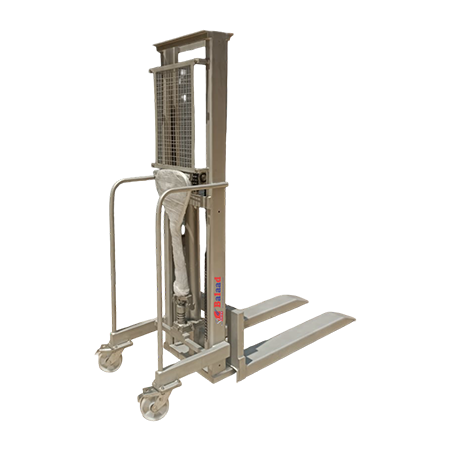

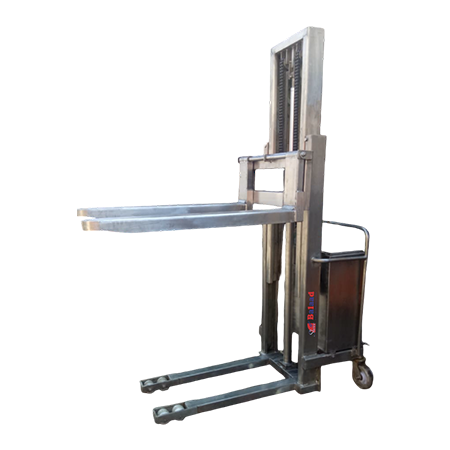

S.S.304 Hydraulic Stacker
Key Features
- Manufactured from 100% S.S.304 grade material
- Corrosion-resistant and hygienic construction
- Manual hydraulic lifting (foot pedal/hand lever)
- Easy-to-clean, chemical-resistant surface
- Heavy-duty S.S. forks and mast assembly
- Smooth & controlled lifting and lowering
- Food-grade & pharma-grade design
- High-strength PU/Nylon wheels (rust-free)
- Ideal for corrosive or moisture-rich environments
- Low maintenance and long operational life
Detailed Description (Model No.: SB-115)
An industrial-grade hydraulic stacker made entirely from S.S.304, offering superior corrosion resistance, easy sanitation, and long-lasting performance in demanding environments.
The S.S.304 Hydraulic Stacker is engineered for reliable lifting and safe material handling while maintaining strict compliance with hygiene standards. Built with 100% stainless steel (grade 304) including the frame, forks, fasteners, and major components, it resists rust, moisture, and harsh chemical exposure.
The stacker operates through a manual hydraulic pump system using a foot pedal or hand lever. This provides smooth, controlled lifting of pallets, drums, containers, or materials. The stainless-steel structure ensures easy cleaning and sterilization, making it suitable for handling sensitive or contamination-free products.
High-quality stainless-steel finish, sealed bearings, and smooth welded edges ensure durability, safety, and extended life even in harsh or wet operating conditions.
Technical Parameter
| SB-115 S.S.304 Hydraulic Stacker | ||||||
|---|---|---|---|---|---|---|
| Max. Load Capacity (kg) | 1000 | 1500 | 2000 | |||
| Mast Type | Single | Double | Single | Double | Single | Double |
| Max. Lifting Height (mm) | 1600 | 2500 / 3000 / 3500 / 4500 | 1600 | 2500 / 3000 / 3500 / 4500 | 1600 | 2500 |
| Overall Height Mast Lowered (mm) | 1970 | 1750 / 2000 / 2250 / 2750 | 1970 | 1750 / 2000 / 2250 / 2750 | 1970 | 1750 |
| Overall Height Mast Extended (mm) | 1970 | 3000 / 3500 / 4000 / 5000 | 1970 | 3000 / 3500 / 4000 / 5000 | 1970 | 3000 |
| Min. Height of Fork (mm) | 90 | 90 | 90 | |||
| Load Center (mm) | 550 | 550 | 550 | |||
| Overall Length (mm) | 1690 | 1690 | 1690 | |||
| Overall Width (mm) | 760 | 760 | 760 | |||
| Fork Size (L × W × H) (mm) | 1150 × 160 × 60 | 1150 × 160 × 60 | 1150 × 160 × 60 | |||
| Forks outside width (mm) | 350–680 | 350–680 | 350–680 | |||
| Leg Length (mm) | 1000 | 1000 | 1000 | |||
| Wheel Type | Nylon/PU | Nylon/PU | Nylon/PU | |||
| Drive Wheel Size (mm) | 180 × 50 | 180 × 50 | 180 × 50 | |||
| Load Wheel Size (mm) | 80 × 70 | 80 × 70 | 80 × 70 | |||
| Structure | S.S.304 | S.S.304 | S.S.304 | |||
| Operating System | Manual / Electric / Battery | |||||
| Customization available as per your requirement | ||||||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Superior rust and corrosion resistance
- Perfect for hygiene-sensitive environments
- Long service life even under harsh conditions
- Easy maintenance and quick sanitation
- Safe, stable, and smooth manual operation
- Non-contaminating and food-grade construction
