Innovation For Productivity

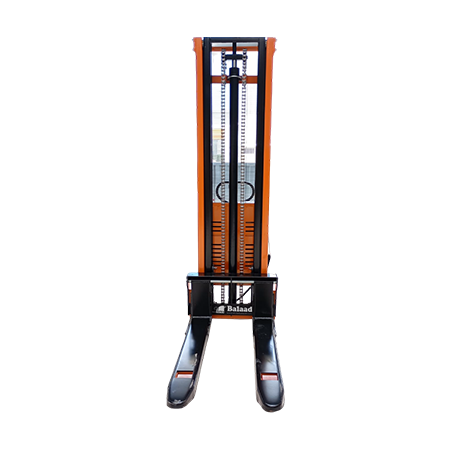

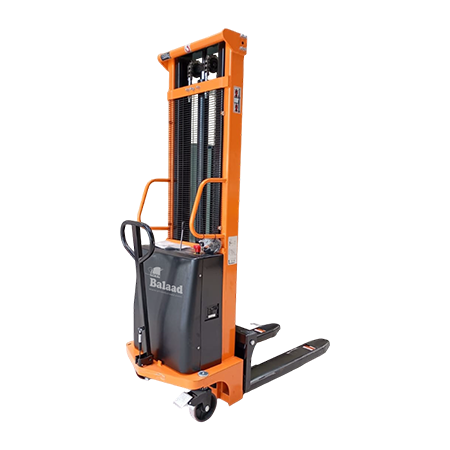

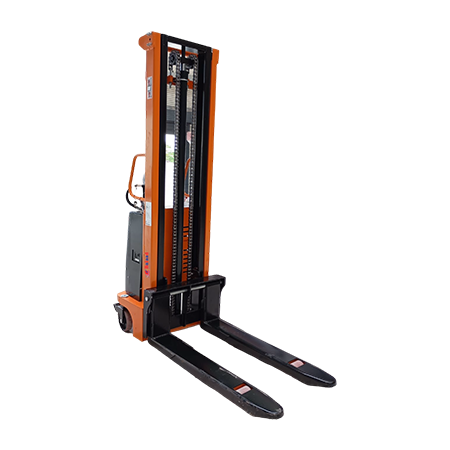

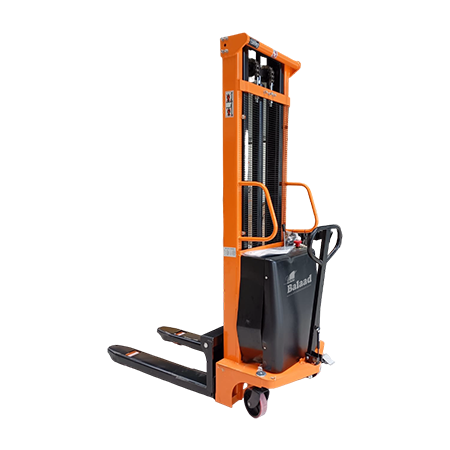

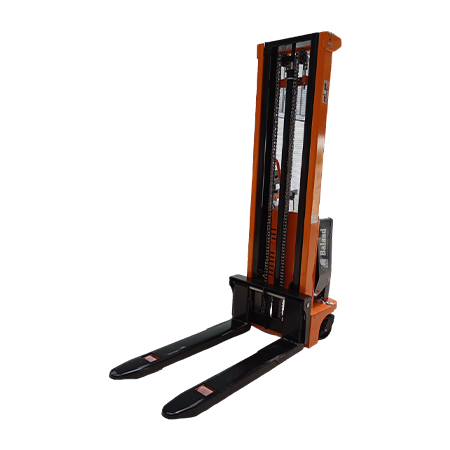

Semi Electric Stacker
Key Features
- Electric lifting through powerful battery-operated motor
- Manual movement for low running cost
- High-strength steel mast (Single/Double mast)
- Ergonomic control handle for smooth operation
- PU/Nylon wheels for effortless pushing
- Emergency stop switch & safety cut-off
- Overload protection valve
- Maintenance-free battery with smart charger
- Quiet and smooth lifting operation
Detailed Description (Model No.: SB-14)
The Semi Electric Stacker offers electric lifting powered by a making it an economical and practical option for warehouses, factories, and logistics operations.
The Semi Electric Stacker features a strong steel chassis, durable mast structure, and a high-performance hydraulic system driven by an electric motor. Operators can raise the forks effortlessly using the electric lift button, reducing physical strain and increasing productivity.
Its compact turning radius and narrow-aisle design make it perfect for space-constrained environments.
Technical Parameter
| SB-14 Semi Electric Stacker | ||||||
|---|---|---|---|---|---|---|
| Max. Load Capacity (kg) | 1000 | 1500 | 2000 | |||
| Mast Type | Single | Double | Single | Double | Single | Double |
| Max. Lifting Height (mm) | 1600 | 2500 / 3000 / 3500 / 4500 | 1600 | 2500 / 3000 / 3500 / 4500 | 1600 | 2500 |
| Overall Height Mast Lowered (mm) | 1970 | 1750 / 2000 / 2250 / 2750 | 1970 | 1750 / 2000 / 2250 / 2750 | 1970 | 1750 |
| Overall Height Mast Extended (mm) | 1970 | 3000 / 3500 / 4000 / 5000 | 1970 | 3000 / 3500 / 4000 / 5000 | 1970 | 3000 |
| Min. Height of Fork (mm) | 90 | 90 | 90 | |||
| Load Center (mm) | 550 | 550 | 550 | |||
| Overall Length (mm) | 1670 | 1690 | 1690 | |||
| Overall Width (mm) | 760 | 760 | 760 | |||
| Fork Size (L × W × H) (mm) | 1150 × 160 × 60 | 1150 × 160 × 60 | 1150 × 160 × 60 | |||
| Forks Outside Width (mm) | 350–680 | 350–680 | 350–680 | |||
| Leg Length (mm) | 1000 | 1000 | 1000 | |||
| Wheel Type | Nylon / PU | Nylon / PU | Nylon / PU | |||
| Drive Wheel Size (mm) | 180 × 50 | 180 × 50 | 180 × 50 | |||
| Load Wheel Size (mm) | 80 × 70 | 80 × 70 | 80 × 70 | |||
| Motor (hp) | 1 hp | 2 hp / 2 hp / 3 hp / 3 hp | 2 hp / 2 hp / 2 hp / 3 hp / 3 hp | 2 hp | ||
| Oil Tank (ltr) | 25 ltr | 25 ltr | 25 ltr | |||
| Power Supply (V/Ah) | 380 V | 380 V | 380 V | |||
| Customization available as per your requirement | ||||||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Reduced operator fatigue due to electric lifting
- More economical compared to fully electric stackers
- Low maintenance and easy operation
- Higher productivity in medium-duty applications
- Smooth and controlled lifting
