Single / Double Girder EOT Crane
Key Highlights
- Heavy-duty steel construction
- Smooth cross-travel & long-travel movement
- VFD/variable speed control options for precision
- High-quality motors, brakes & gearboxes
- Overload protection & safety limit switches
- Low maintenance with long service life
- Customizable span, height & duty class

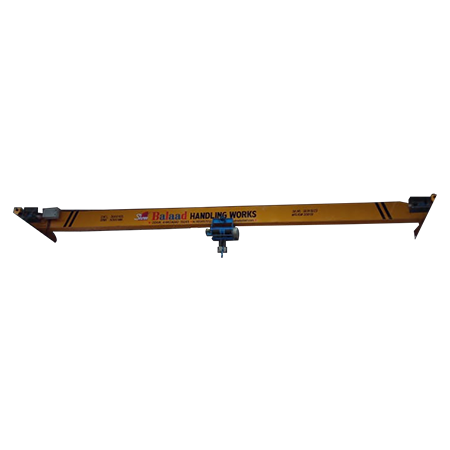

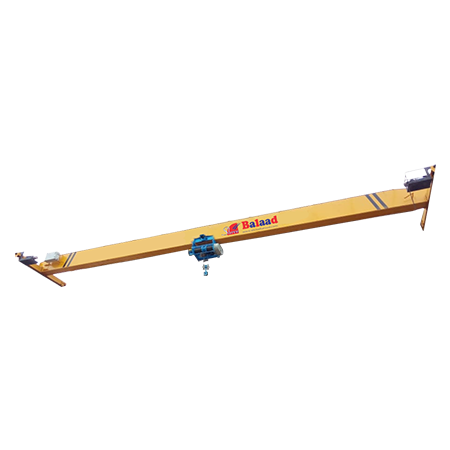

Detailed Description (Model No.: SB-71)
The Single / Double Girder Electric Overhead Travelling (EOT) Crane is a high-performance material-handling system designed for efficient lifting, shifting, and positioning of heavy loads across industrial environments. Installed on elevated runways, these cranes enable smooth horizontal movement, offering reliable coverage across production floors, warehouses, assembly lines, and fabrication units.
Built for durability and precision, both Single Girder and Double Girder variants cater to different load requirements and operational conditions—making them suitable for light, medium, and heavy-duty applications.
Technical Parameter
| SB-71 Single / Double Girder EOT Crane | ||
|---|---|---|
| Specification | 5000 KG | 10000 KG |
| Capacity (kg) | 5000 | 10000 |
| Span (m) | 10.5 – 31.5 | 10.5 – 31.5 |
| Lifting Height (mm) | 6 – 16 | 6 – 16 |
| Lifting Speed (m/min) | 11.5 | 8.5 |
| Trolley Speed (m/min) | 37.2 | 37.4 |
| Crane Speed (m/min) | 70.6 | 70.6 |
| Customization available as per your requirement | ||
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Increases productivity & operational efficiency
- Reduces manual labor with safe, controlled lifting
- Suitable for a wide load range (light to heavy duty)
- Custom-built to match site conditions
- Reliable, stable, and long-lasting crane solution
