Innovation For Productivity
Stand-On Platform Fully Battery Stacker
Key Features
- Fully electric operation – electric lift + electric powered travel
- Stand-on operator platform for comfort & higher productivity
- AC drive motor for smooth acceleration & low maintenance
- Heavy-duty steel mast (Single/Double/Triplex Options)
- Ergonomic tiller head with multifunction control
- Electromagnetic braking system for superior safety
- Smart controller for stable driving & precise lifting
- Long-lasting industrial battery with intelligent charger
- PU/Nylon wheels for quiet and smooth travel
- Compact turning radius for use in narrow aisles
- Anti-roll and overload protection features

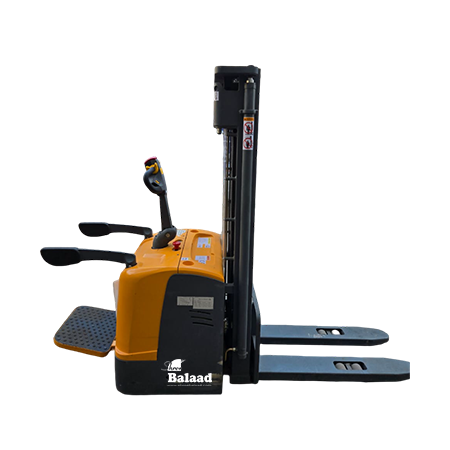

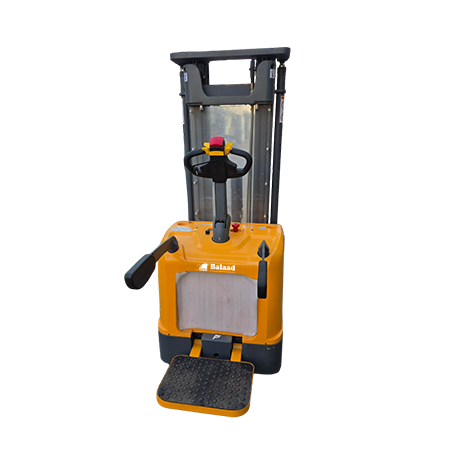

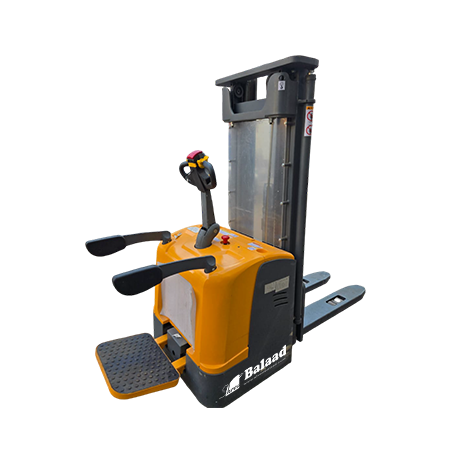

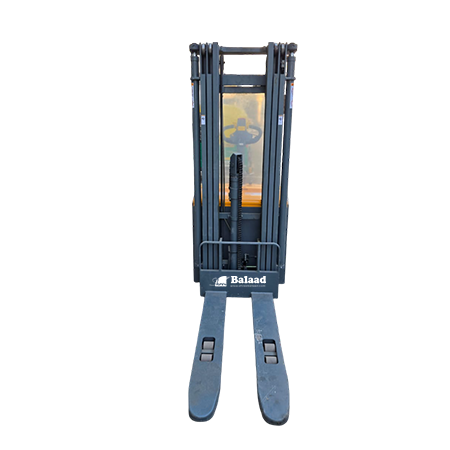

Detailed Description (Model No.: SB-21)
A fully electric high-efficiency stacker with a ride-on operator platform, offering maximum comfort, higher travel speed, and enhanced productivity for demanding material-handling environments.
The Stand-On Platform Fully Battery Stacker is engineered for heavy-duty industrial applications where speed, comfort, and efficiency are essential. Equipped with a robust AC drive motor, electric traction system, and powerful hydraulic lift, it allows operators to lift, lower, and transport pallets effortlessly.
The foldable or fixed stand-on platform enables operators to ride safely, reducing fatigue and improving travel speed. The tiller head features integrated controls for lifting, lowering, forward/reverse drive, horn, and emergency stop, ensuring seamless operation.
The stacker includes high-capacity traction batteries, intelligent chargers, and an advanced controller system for smooth acceleration, stable lifting, and precise handling. Its heavy-duty mast, reinforced frame, and PU load wheels ensure long-lasting performance even in high-load environments.
Technical Parameter
| SB-21 Fully Battery Stacker | |||
|---|---|---|---|
| Max Lifting Height (h3) | 3500 mm | 4500 mm | |
| Features | Drive Mode | Electric | Electric |
| Operator Type | Stand on | Stand on | |
| Rated Capacity Load | 1500 kg | 1500 kg | |
| Load Center Distance | 600 mm | 600 mm | |
| Min Fork Height (h13) | 85 mm | 90 mm | |
| Fork Outer Width (b5) | 685 mm | 685 mm | |
| Fork Length (l) | 1100 mm | 1150 mm | |
| Fork Width (e) | 160 mm | 170 mm | |
| Fork Thickness (s) | 60 mm | 60 mm | |
| Overall Length | 1850 mm | 1990 mm | |
| Body Width (b1) | 825 mm | 850 mm | |
| Stationary Height (h1) | 2350 mm | 2050 mm | |
| Max Working Height (h4) | 3960 mm | 5030 mm | |
| Min Turning Radius (wa) | 1450 mm | 1655 mm | |
| Performance | Running Speed (no load / full load) | 5 / 4 km/h | 6.5 / 6.7 km/h |
| Lifting Speed (no load / full load) | 110 / 90 mm/s | 0.09 / 0.16 | |
| Driving Brake | Electromagnetic | Electromagnetic | |
| Wheel | Wheel Material | Polyurethane (PU) | Polyurethane (PU) |
| Drive Wheel Size | 160 × 55 mm | 250 × 70 mm | |
| Load Bearing Wheel Size | 80 × 70 mm | 80 × 70 mm | |
| Balanced Wheel Size | 115 × 55 mm | 150 × 60 mm | |
| Motor Battery | Drive Motor Power | 0.8 kW | 1.2 kW |
| Lifting Motor Power | 2.2 kW | 2.2 kW | |
| Battery Voltage | 32Ah | 100Ah | |
| Controller | ZI4850 | Curties with AC System | |
Need Heavy-Duty Pallet Trucks, Cranes or Stacker Solutions?
Get a Custom Quote from Experts Today.
Advantages
- Higher travel speed due to operator ride-on platform
- Zero manual effort – reduces fatigue
- Ideal for long-distance, high-volume operations
- Safer and more stable than manual or walkie stackers
- Low running cost with energy-efficient drive system
- Highly productive for 8–12 hour work cycles
